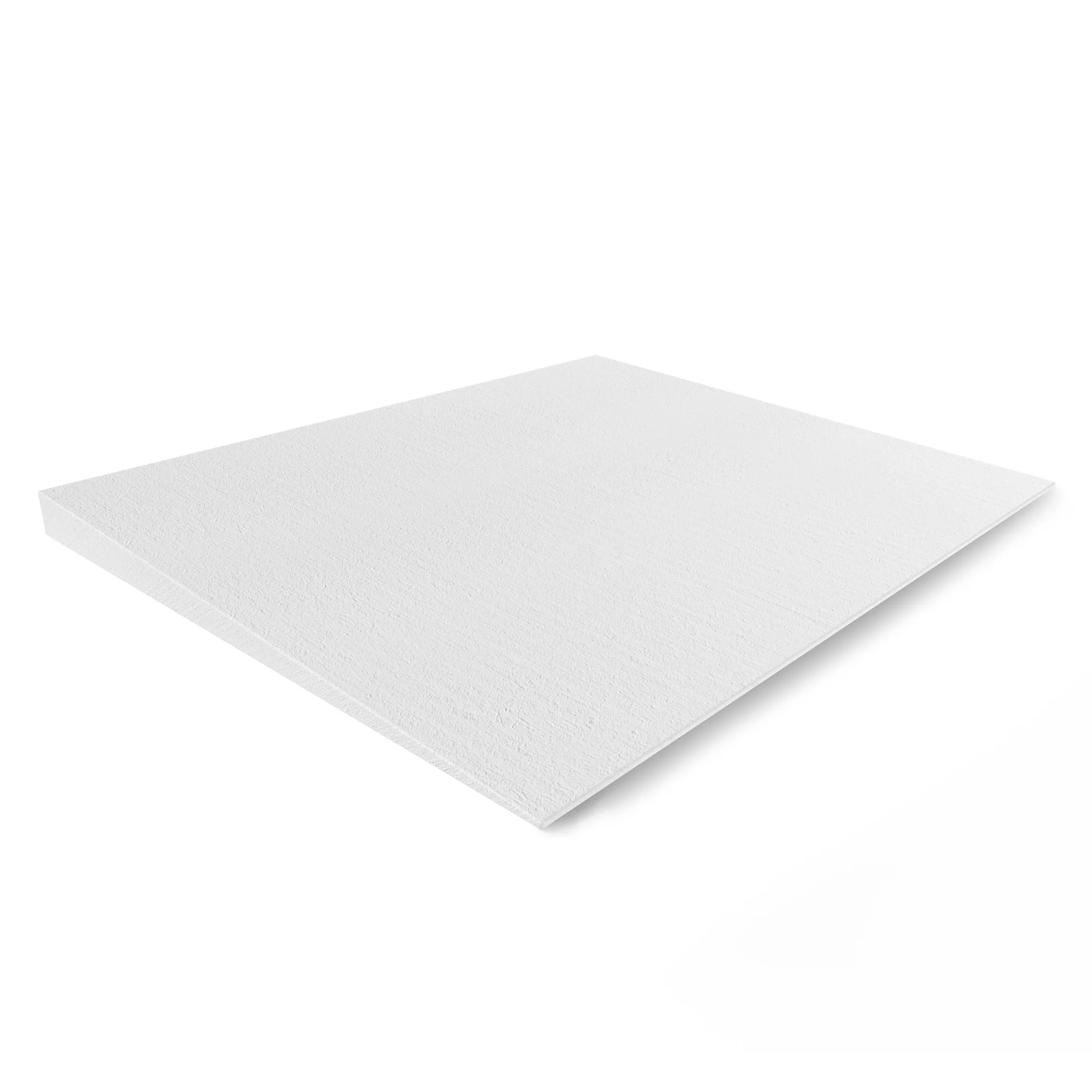

Wedge plates (500 x 400 x 28/5 mm)
Exemplary presentation
Wedge plates (500 x 400 x 28/5 mm)
  • 500 x 400 mm
  • 0,20 m²
  • pre-primed
This product is categorized as: Blanks Blanks

Wedge plates 500 x 400 x 28/5 mm

Artikelnummer: KP09.KP01.028.0001-00
Category:

18,50 € incl. 19% VAT plus shipping costs(18,50 € / piece)

Our 500 × 400 × 28/5 mm calcium silicate wedge panels are the perfect solution for an inconspicuous transition between wall and ceiling - without any distracting edges.

Buy now, pay 30 days later or in installments.
  • Delivery time: 3-6 working days
  • Available for collection
Processing instructionsRequest for quotationProduct data sheet
Favorable prices
Proven quality at an affordable price!
Personal
consultation
We are here for you and will be happy to help you by e-mail and telephone.
Convenient delivery or collection in Essen
You can have your order conveniently delivered to your home or collect it in person from our warehouse in 45136 Essen.
Excellent
customer feedback
We give everything for you! Our ratings reflect this promise.
Installment and invoice payment
With Klarna you can pay conveniently on account or in installments.
100%
safe shopping
Your communication with our servers is protected by secure 256-bit SSL encryption!

The wedge shape of the panels ensures an even and continuous flow of the insulating surface and prevents the formation of thermal bridges/cold bridges at critical points. This solution is ideal if you only want to insulate partial areas/connecting surfaces without sacrificing a harmonious overall appearance.

Here are the advantages of our calcium silicate wedge panels

  • The transition to the ceiling or adjoining wall is stepless.
  • The perfect complement to our classic calcium silicate panels.
  • The product is non-flammable, moisture-regulating and mold-resistant.
  • As part of the refurbishment measures, thermal bridges at wall-ceiling connections are professionally eliminated.

Typical areas of application

  • Ceiling
  • Adjacent interior walls
  • Critical/narrow areas

Additional information

Weight 880 g
Size 40 × 50 × 2.8 cm
Applicable substrates

Mineral substrates e.g. sand-lime bricks, bricks, lime plaster, concrete etc. ...
Properties

open to vapor diffusion, The product does not contain or release any hazardous substances according to EOTA TR 034 (version October 2015), moisture-regulating, suitable for use in contact with austenitic steels (ASTM 795), good mechanical strength, high thermal resistance, capillary-active, no mineral foam, no perlite, no carcinogenic mineral fibres, low thermal conductivity, ecologically harmless, quality exceeds the requirements of ASTM and DIN EN standards, purely mineral, mould-inhibiting (alkaline), sulphur-free and low-iron, very easy to process, increases the feel-good factor
Fire properties

Non-combustible class A1 according to EN 13501-1:2018
Product family

Thermal insulation panel made of mineral material
Area of application

Interior insulation of ceilings (underside) or the roof, interior insulation of ceilings or floor slabs (top side) under screed without sound insulation requirements, interior insulation of walls, mold remediation
Authorization

ETA (European Technical Assessment Body of the German Institute for Building Technology DIBt )
Thermal conductivity

Lambda value λ : 0.067 W/(mK), λD(23.50) = 0.073 W/(m-K) * nominal value
Compressive strength

1000 kPa
pH value

10.3 (alkaline, strongly mold-inhibiting)
Pre-primed

Yes
Calcium silicate boards Strength

premium
Delivery form

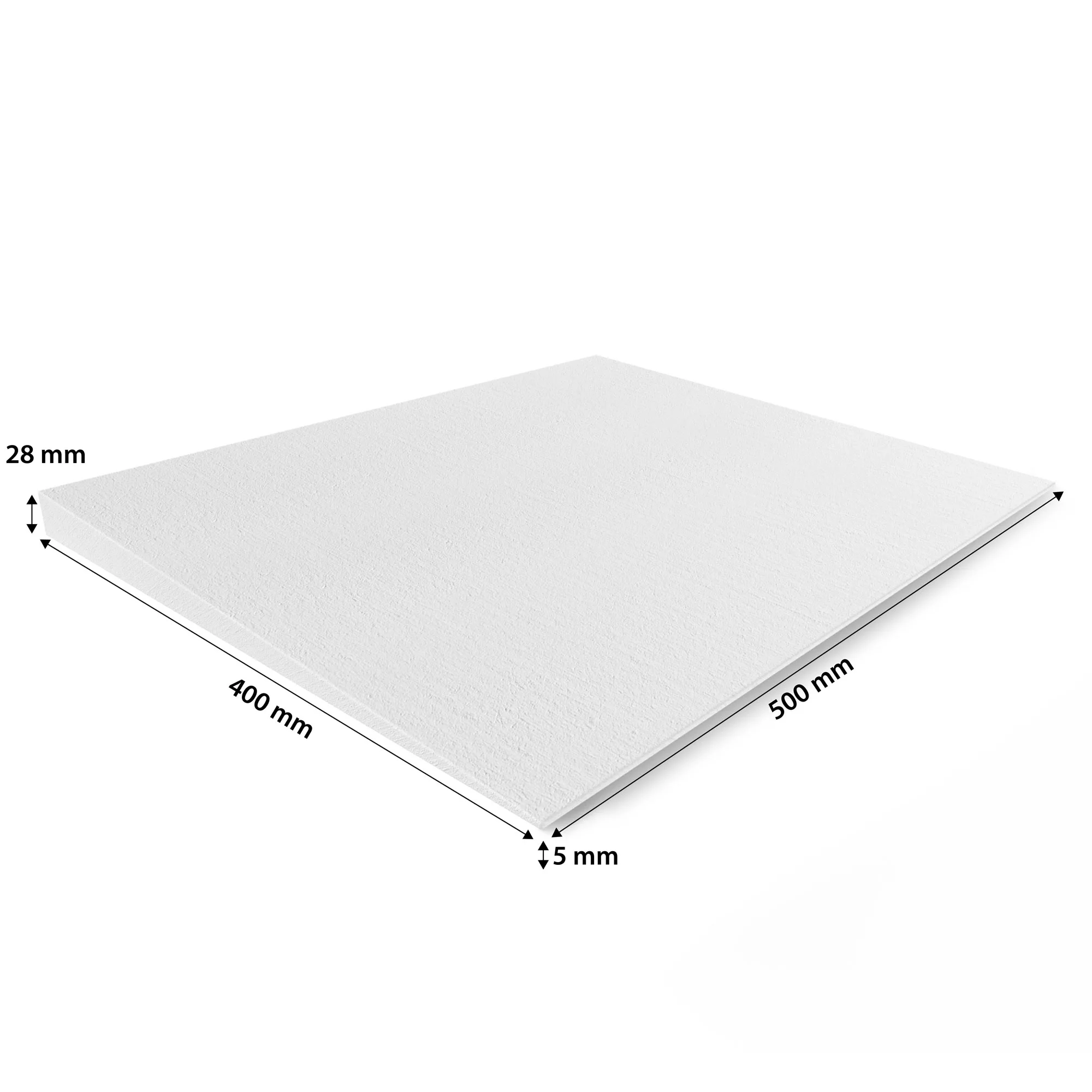

Sheets 500 x 400 x 28/5 mm
Water vapor diffusion resistance

μ = 2 or 5 2
Pore space

90%
Raw density

230 kg/m3 to 265 kg/m3
Brand

Calcium silicate panel store
Special features

Fast installation, fewer joints, less filling work, fewer thermal bridges, factory pre-primed surface
