• 19 mm
  • 500 x 240 mm
  • 0,12 m²
  • Standard
  • pre-primed
This product is categorized as: Blanks Blanks

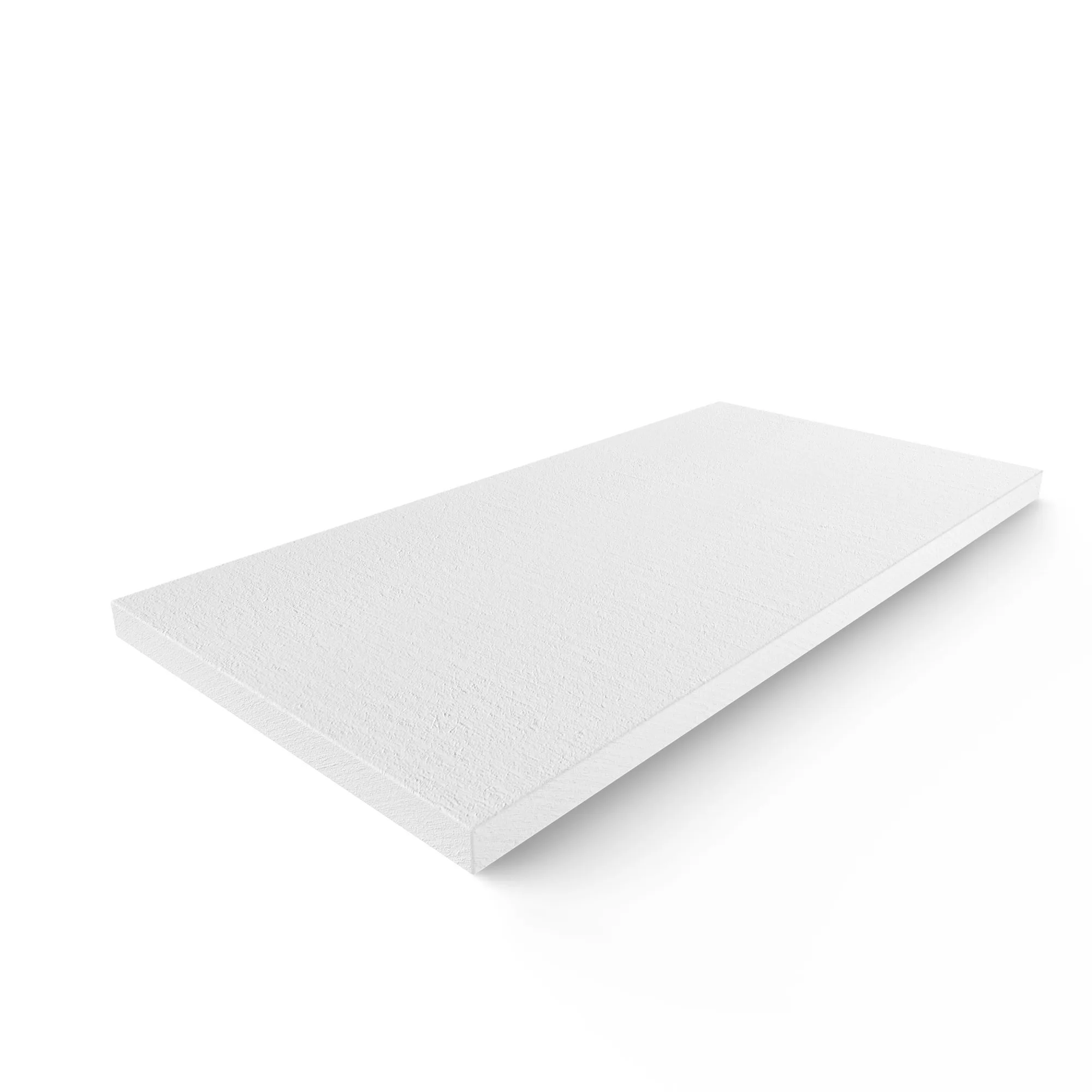

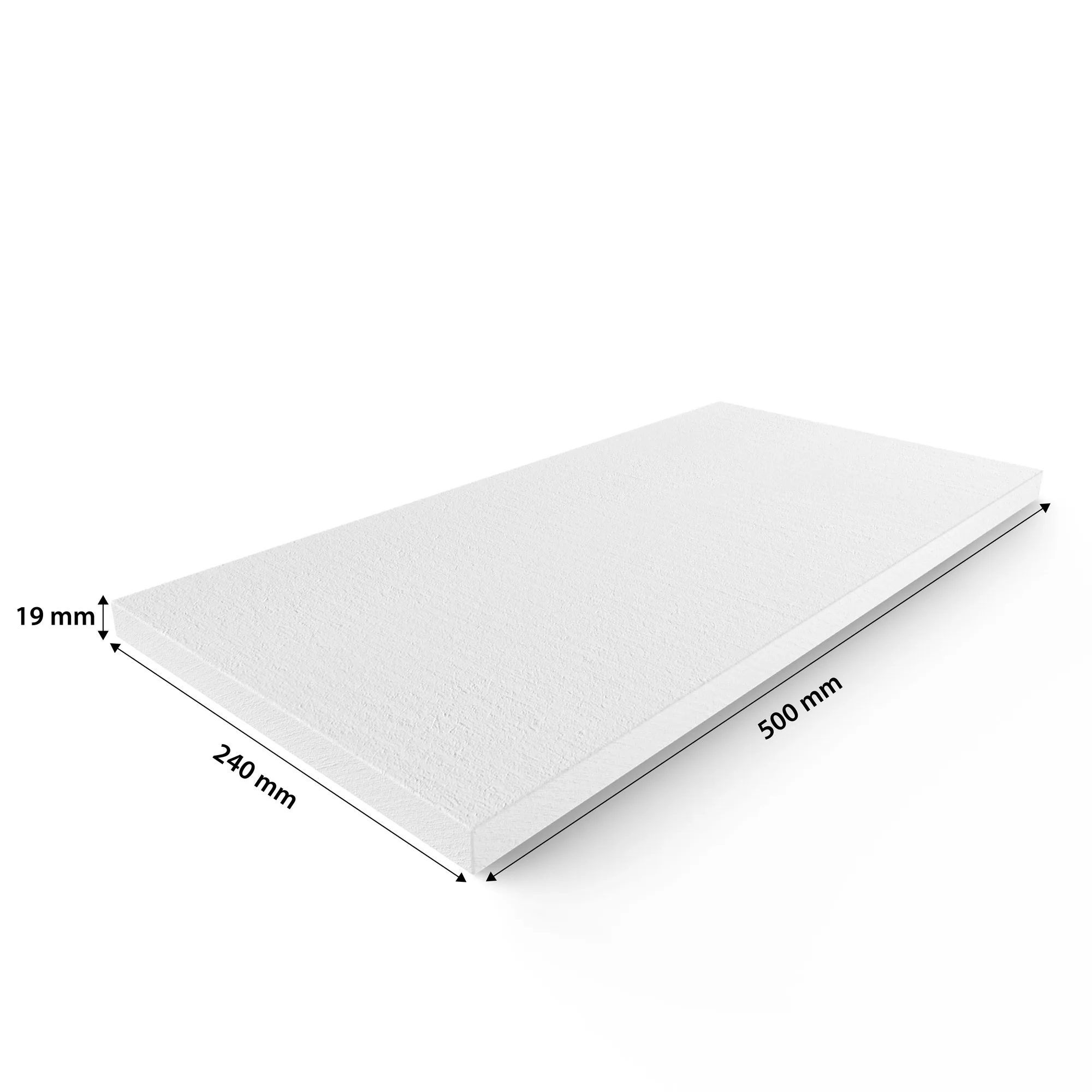

Calcium silicate reveal panels 19 mm500x240x19mm

Artikelnummer: KP08.LP01.019.0001-00
Category:

6,90  incl. 19% VAT plus shipping costs(6,90 € / piece)

With a thickness of 19 mm, the special calcium silicate reveal board cut to size in 500 x 240 format is thinner than our classic calcium silicate board formats. They have been specially developed for window reveals, radiator niches or areas where thicker formats are not possible and prevent the formation of a thermal bridge.

  • Professional mold remediation / mold prevention & indoor climate improvement
  • Natural building material - Guaranteed no outgassing (0% VOC)
  • Pre-primed & sharp-edged sanded at the factory
  • Fast installation and fewer joints & fewer thermal bridges
  • Can also be applied directly to gypsum plaster - gypsum plaster does not need to be knocked off
  • Premium quality direct to the construction site for private & commercial use

Buy now, pay 30 days later or in installments.
  • Delivery time: 3-6 working days
  • Available for collection
Favorable prices
Proven quality at an affordable price!
Personal
consultation
We are here for you and will be happy to help you by e-mail and telephone.
Convenient delivery or collection in Essen
You can have your order conveniently delivered to your home or collect it in person from our warehouse in 45136 Essen.
Excellent
customer feedback
We give everything for you! Our ratings reflect this promise.
Installment and invoice payment
With Klarna you can pay conveniently on account or in installments.
100%
safe shopping
Your communication with our servers is protected by secure 256-bit SSL encryption!

Calcium silicate boards for effective interior insulation and mold remediation

Advantages of interior insulation with calcium silicate boards

  • Flexible insulation room by room, tailored to individual requirements
  • Working independently of the weather, unlike façade insulation
  • Gradual insulation reduces costs in one fell swoop
  • No plastering skills or reinforcement required

Strengths of calcium silicate boards compared to other insulation materials

  • Natural material: buffers moisture and prevents mold growth
  • Fire protection class A1: non-combustible
  • Mould-inhibiting, diffusion-open, capillary-active: optimum climate regulation
  • Sound-insulating and heat-insulating for improved comfort
  • Ecologically recyclable: environmentally friendly construction

Composition and properties of the calcium silicate board

  • Natural raw material consisting of lime, water, sand and cellulose fibers
  • Environmentally friendly and without carcinogenic mineral fibers
  • Over 90% pore content for excellent thermal insulation
  • High moisture storage capacity and climate-regulating capillarity

Effective mold remediation and sustainable room drying

  • Mold remediation on walls and interior insulation of exterior walls
  • Controlled moisture release without signs of rotting
  • Surface temperature increase to prevent condensation

Which panel thickness is right for me?

The correct panel thickness depends on various factors, which we would like to explain to you in more detail. To achieve optimum insulation, we look at the lambda value of our calcium silicate boards. This value describes the thermal conductivity and the lower it is, the better the material insulates.

As it is not always possible to calculate all the technical constraints, especially for private customers, the simplest choice of panel thickness is often a question of budget and available space. Here, the maximum possible should be selected in order to achieve an individually good result.

You can find a detailed explanation in our FAQ.

Order now or request personal advice

If you have any questions or need advice, please do not hesitate to contact us by e-mail or telephone.

Order high-quality calcium silicate boards now and ensure effective interior insulation and mold remediation in your rooms. Renovate yourself and save money!

Additional information

Weight 830 g
Size 24 × 50 × 1.9 cm
Panel thickness

19 mm

Delivery form

Sheets 500 x 240 x 19 mm

Panel class

Standard

Calcium silicate boards Strength

premium

Special features

Fast installation, fewer joints, less filling work, fewer thermal bridges, factory pre-primed surface

Product family

Thermal insulation panel made of mineral material

Area of application

Interior insulation of ceilings (underside) or the roof, interior insulation of ceilings or floor slabs (top side) under screed without sound insulation requirements, interior insulation of walls, mold remediation

Applicable substrates

Mineral substrates e.g. sand-lime bricks, bricks, lime plaster, concrete etc. ...

Pre-primed

Yes

Properties

open to vapor diffusion, The product does not contain or release any hazardous substances according to EOTA TR 034 (version October 2015), moisture-regulating, suitable for use in contact with austenitic steels (ASTM 795), good mechanical strength, high thermal resistance, capillary-active, no mineral foam, no perlite, no carcinogenic mineral fibres, low thermal conductivity, ecologically harmless, quality exceeds the requirements of ASTM and DIN EN standards, purely mineral, mould-inhibiting (alkaline), sulphur-free and low-iron, very easy to process, increases the feel-good factor

Fire properties

Non-combustible class A1 according to EN 13501-1:2018

pH value

10.3 (alkaline, strongly mold-inhibiting)

Thermal conductivity

Lambda value λ : 0.067 W/(mK), λD(23.50) = 0.073 W/(m-K) * nominal value

Water vapor diffusion resistance

μ = 2 or 5 2

Pore space

90%

Raw density

230 kg/m3 to 265 kg/m3

Compressive strength

1000 kPa

Brand

Calcium silicate panel store
